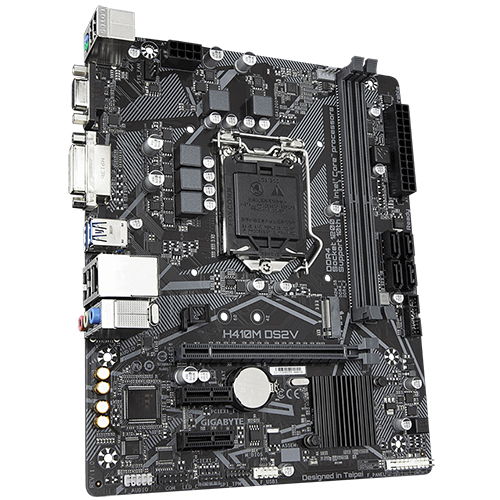

Mainboard GIGABYTE H410M DS2V

* Thông số kỹ thuật

Sản phẩm: Bo mạch chủ

Tên Hãng: GIGABYTE

Model: H410M DS2V

CPU hỗ trợ: Intel

Chipset: H410

RAM hỗ trợ: 2 x DDR4 memory slots, tối đa 32GB

Intel® Core™ i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

Intel® Core™ i5/i3/Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng: 1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slot

Ổ cứng hỗ trợ: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)

4 x SATA 6Gb/s connectors

Cổng kết nối (Internal): 1:  1 x 24-pin ATX main power connector

2:  1 x 8-pin ATX 12V power connector

3:  1 x CPU fan header

4:  1 x system fan header

5:  1 x RGB LED strip header

6:  4 x SATA 6Gb/s connectors

7:  1 x M.2 Socket 3 connector

8:  1 x front panel header

9:  1 x front panel audio header

10:  1 x USB 3.2 Gen 1 header

11:  1 x USB 2.0/1.1 header

12:  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

13:  1 x serial port header

14:  1 x Clear CMOS jumper

Cổng kết nối (Back Panel): 1:  1 x PS/2 keyboard/mouse port

2:  1 x D-Sub port

3:  1 x DVI-D port

4:  2 x USB 3.2 Gen 1 ports

5:  4 x USB 2.0/1.1 ports

6:  1 x RJ-45 port

7:  3 x audio jacks

LAN / Wireless: Realtek® GbE LAN chip (1000/100 Mbit)

Kích cỡ: Micro ATX Form Factor; 22.6cm x 18.5cm
